Llama.cpp

Overview

Open WebUI makes it simple and flexible to connect and manage a local Llama.cpp server to run efficient, quantized language models. Whether you’ve compiled Llama.cpp yourself or you're using precompiled binaries, this guide will walk you through how to:

• Set up your Llama.cpp server
• Load large models locally
• Integrate with Open WebUI for a seamless interface

Let’s get you started!

---

Step 1: Install Llama.cpp

To run models with Llama.cpp, you first need the Llama.cpp server installed locally.

You can either:

• 📦 Download prebuilt binaries
• 🛠️ Or build it from source by following the official build instructions

After installing, make sure llama-server is available in your local system path or take note of its location.

---

Step 2: Download a Supported Model

You can load and run various GGUF-format quantized LLMs using Llama.cpp. One impressive example is the DeepSeek-R1 1.58-bit model optimized by UnslothAI. To download this version:

1. Visit the Unsloth DeepSeek-R1 repository on Hugging Face
2. Download the 1.58-bit quantized version – around 131GB.

Alternatively, use Python to download programmatically:

# pip install huggingface_hub hf_transfer

from huggingface_hub import snapshot_download

snapshot_download(
    repo_id = "unsloth/DeepSeek-R1-GGUF",
    local_dir = "DeepSeek-R1-GGUF",
    allow_patterns = ["*UD-IQ1_S*"],  # Download only 1.58-bit variant
)

This will download the model files into a directory like:

DeepSeek-R1-GGUF/
└── DeepSeek-R1-UD-IQ1_S/
    ├── DeepSeek-R1-UD-IQ1_S-00001-of-00003.gguf
    ├── DeepSeek-R1-UD-IQ1_S-00002-of-00003.gguf
    └── DeepSeek-R1-UD-IQ1_S-00003-of-00003.gguf

📍 Keep track of the full path to the first GGUF file — you’ll need it in Step 3.

---

Step 3: Serve the Model with Llama.cpp

Start the model server using the llama-server binary. Navigate to your llama.cpp folder (e.g., build/bin) and run:

./llama-server \
  --model /your/full/path/to/DeepSeek-R1-UD-IQ1_S-00001-of-00003.gguf \
  --port 10000 \
  --ctx-size 1024 \
  --n-gpu-layers 40

🛠️ Tweak the parameters to suit your machine:

• --model: Path to your .gguf model file
• --port: 10000 (or choose another open port)
• --ctx-size: Token context length (can increase if RAM allows)
• --n-gpu-layers: Layers offloaded to GPU for faster performance

Once the server runs, it will expose a local OpenAI-compatible API (Chat Completions) on:

http://127.0.0.1:10000

tip

Open WebUI also supports the experimental Open Responses specification for providers that implement it.

---

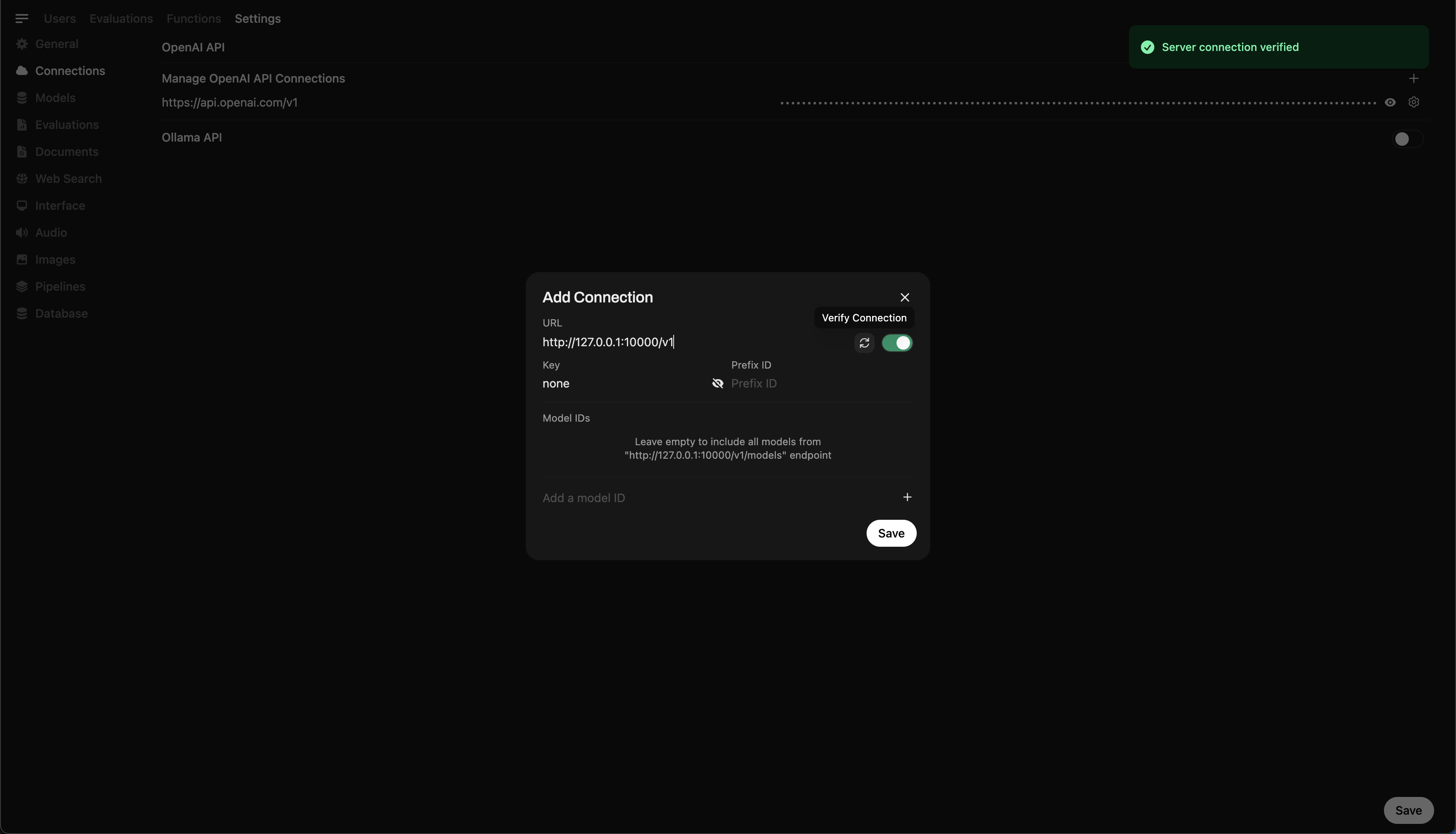

Step 4: Connect Llama.cpp to Open WebUI

To control and query your locally running model directly from Open WebUI:

1. Open Open WebUI in your browser
2. Go to ⚙️ Admin Settings → Connections → OpenAI.
3. Click ➕ Add Connection.
4. Set the following (under Standard / Compatible if tabs are visible):
   • URL: http://127.0.0.1:10000/v1 (Or use http://host.docker.internal:10000/v1 if running WebUI inside Docker. Note the /v1 at the end!)
   • API Key: none (leave blank or type specific key if configured)
   • Provider: pick llama.cpp from the Provider dropdown. This unlocks the loaded-model indicator and the admin Eject button in the model selector — see Unloading Loaded Models below. Leave at Default if you do not need that feature.

💡 Once saved, Open WebUI will begin using your local Llama.cpp server as a backend!

Connection Timeout Configuration

If your Llama.cpp server is slow to initialize or you see timeout errors, you can increase the model list fetch timeout:

# Increase timeout for slower model loading (default is 10 seconds)
AIOHTTP_CLIENT_TIMEOUT_MODEL_LIST=30

If you've saved an unreachable URL and the UI becomes unresponsive, see the Model List Loading Issues troubleshooting guide.

---

Unloading Loaded Models

Once a model is held in memory by your llama-server instance, Open WebUI marks it with a green "Loaded" indicator in the model selector. Admins also see an Eject button on the row that unloads the model without restarting the server — it calls POST /api/models/unload, which in turn hits llama.cpp's POST /models/unload endpoint on the OpenAI-compatible connection's root URL.

For this to work, the matching connection in Admin Settings → Connections → OpenAI must have its Provider set to llama.cpp (Open WebUI uses that hint to pick the correct unload mechanism). Connections left at the default OpenAI-compatible provider type return an error when an admin attempts to unload a model.

---

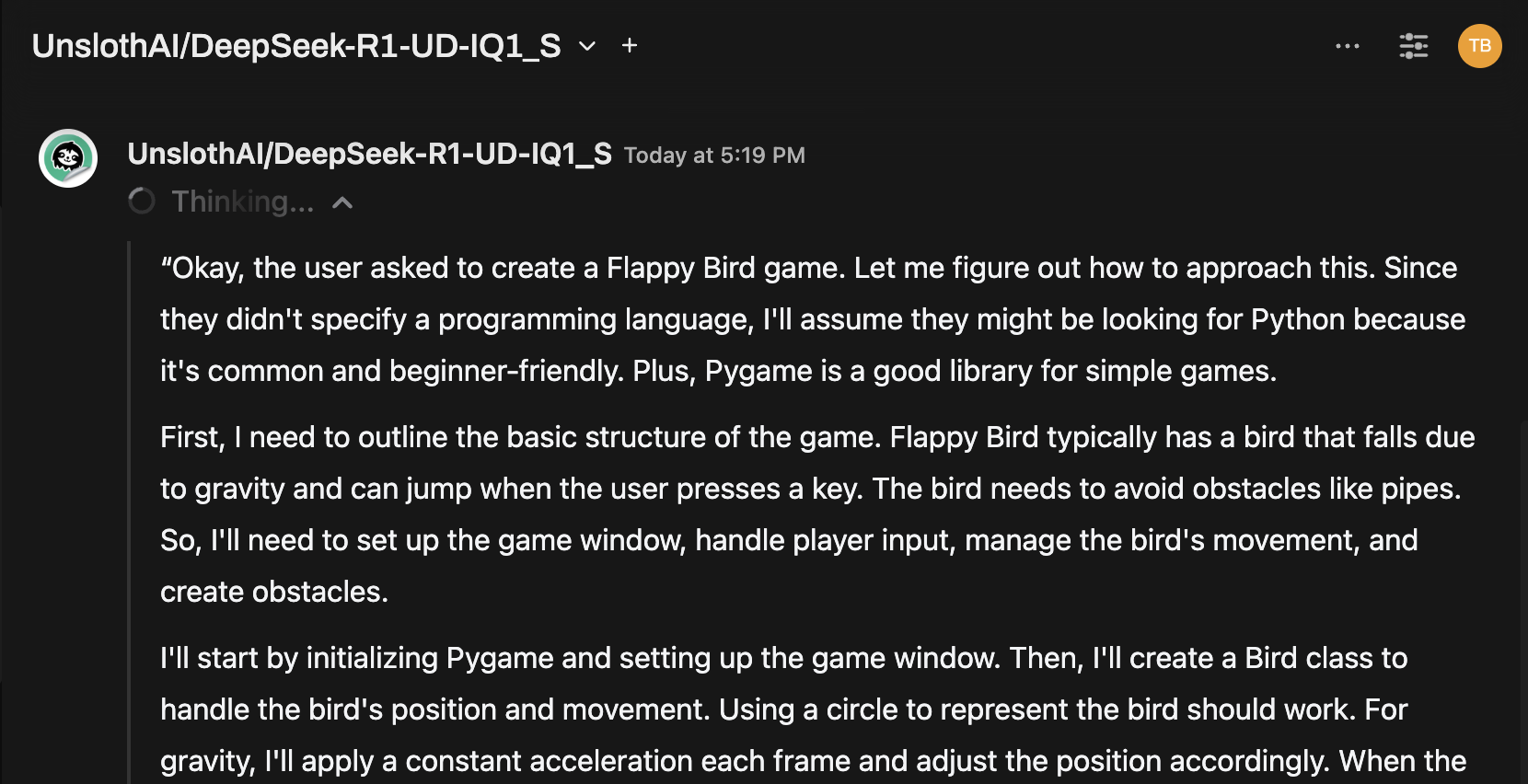

Quick Tip: Try Out the Model via Chat Interface

Once connected, select the model from the Open WebUI chat menu and start interacting!

---

You're Ready to Go!

Once configured, Open WebUI makes it easy to:

• Manage and switch between local models served by Llama.cpp
• Use the OpenAI-compatible API with no key needed
• Experiment with massive models like DeepSeek-R1 — right from your machine!

---

🚀 Have fun experimenting and building!
